Description

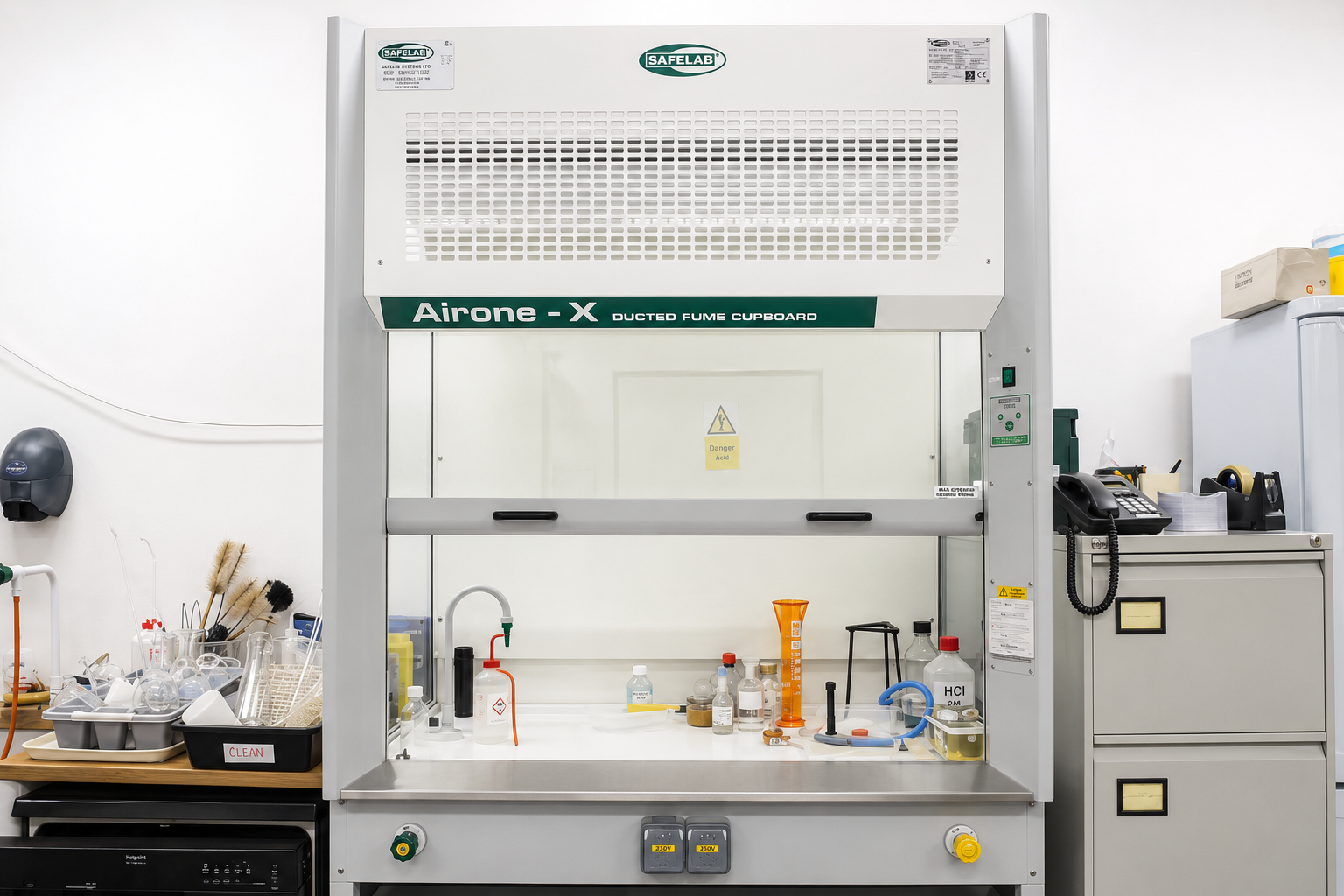

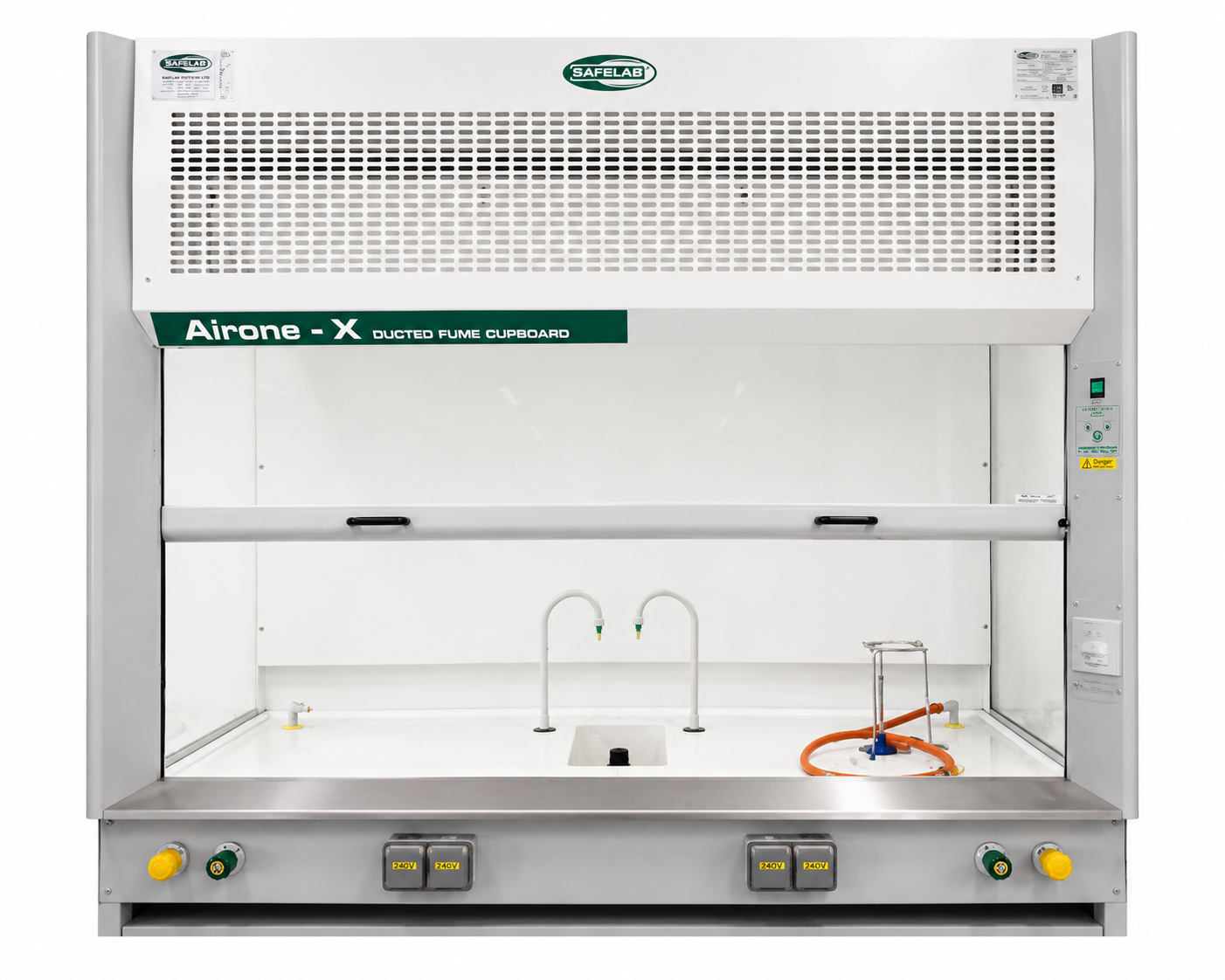

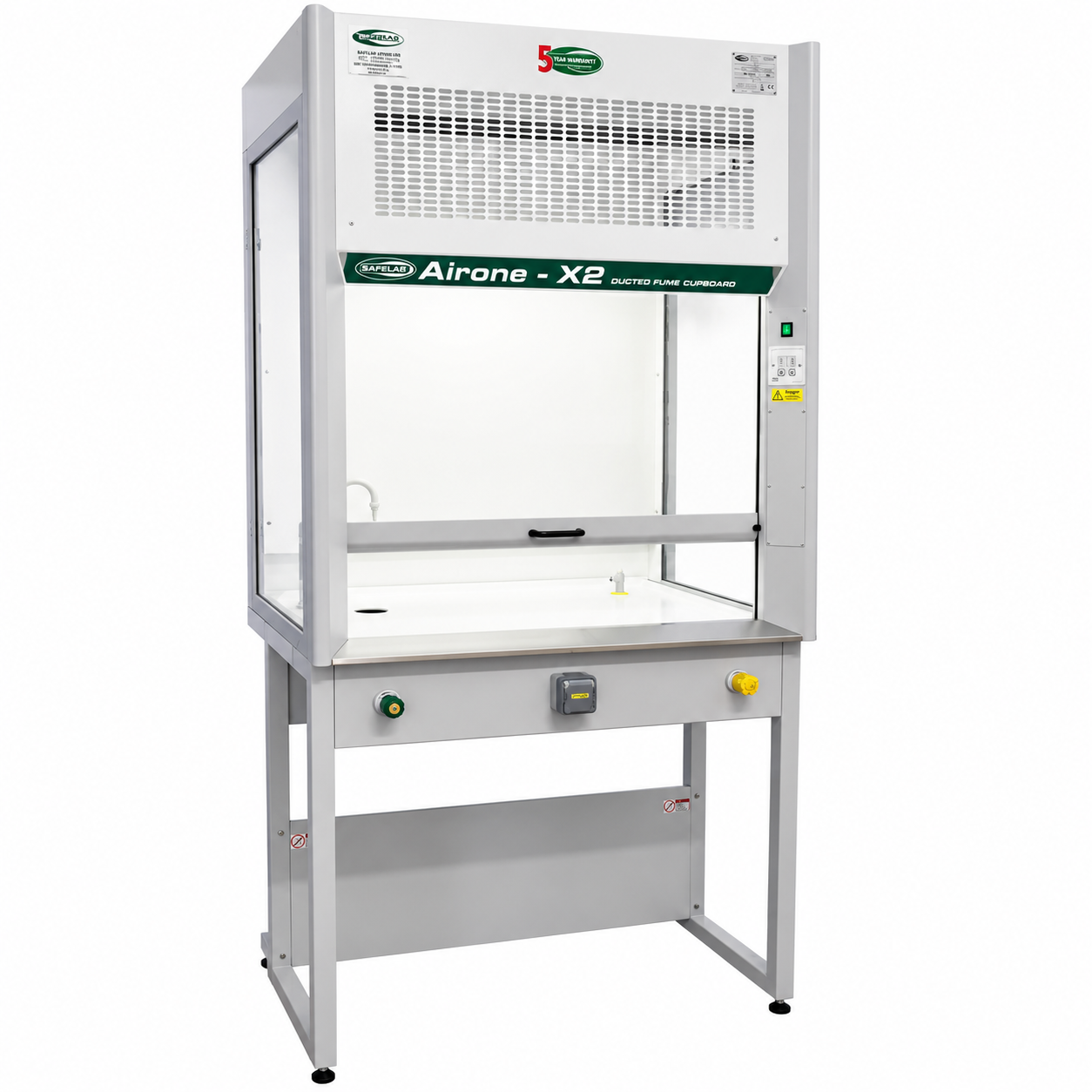

The Airone 1000X2 Ducted Fume Cupboard is a high-performance ducted extraction system designed for science laboratories, preparation rooms and educational environments where hazardous fumes must be safely removed to atmosphere. Successfully tested by CLEAPSS and certified to BS EN 14175, the Airone 1000X2 provides reliable protection for staff and students whilst meeting the requirements of CLEAPSS G9 guidance.
Manufactured from durable epoxy-coated mild steel and featuring laminated safety glass side panels, the Airone 1000X2 is built to withstand the demands of busy school and college laboratories. A counterbalanced sliding front sash provides safe and easy operation, while the integrated bypass system helps maintain consistent airflow throughout the working aperture.
The cupboard is supplied complete with a polypropylene work surface, Vulcathene drip cup, remote water and natural gas services, electrical socket and support stand. Built-in LED lighting provides excellent visibility, and a low airflow alarm offers additional reassurance by alerting users to changes in extraction performance.
Designed for connection to an external extraction system, the Airone 1000X2 is ideal for laboratories requiring full ducted fume removal and compliance with recognised educational laboratory standards.
Key Features
- Tested and certified to BS EN 14175
- Complies with CLEAPSS G9 guidance
- Successfully tested by CLEAPSS
- Ducted extraction system
- Bypass airflow system for consistent performance
- Counterbalanced sliding front sash
- Laminated safety glass side windows
- Built-in LED lighting
- Low airflow alarm
- Durable epoxy coated steel construction
- Polypropylene chemical-resistant worktop
- Remote water and gas services included
- Suitable for schools, colleges and laboratory environments
Standard Specification
- External Dimensions: 1000mm W × 760mm D × 1300mm H
- Internal Dimensions: 950mm W × 550mm D × 1050mm H
- Epoxy coated mild steel construction (RAL 7035)
- Counterweighted front sliding glass sash
- Laminated safety glass side windows
- Solid grade laminate rear baffle
- 400mm front opening with safety stops
- Built-in LED lighting
- Low airflow monitoring alarm
- Polypropylene worktop with Vulcathene drip cup
- Remote water service
- Remote natural gas service
- Single electrical socket
- Support stand (adds 900mm to overall height)
Optional Extras
- Delivery and positioning service
- On-site commissioning
- Preparation Room Upgrade Package:
- Double electrical socket
- 900mm vented storage cabinet
- 0.4kW inverter (non-RCBO supply required)
- S25 pre-built external fan package
- Three-phase external fan system
- 1.8m discharge stack
Ideal For
- Secondary school science laboratories
- College laboratories
- Chemistry teaching environments
- Science preparation rooms
- STEM facilities
- Laboratories requiring external ducted extraction
