Description

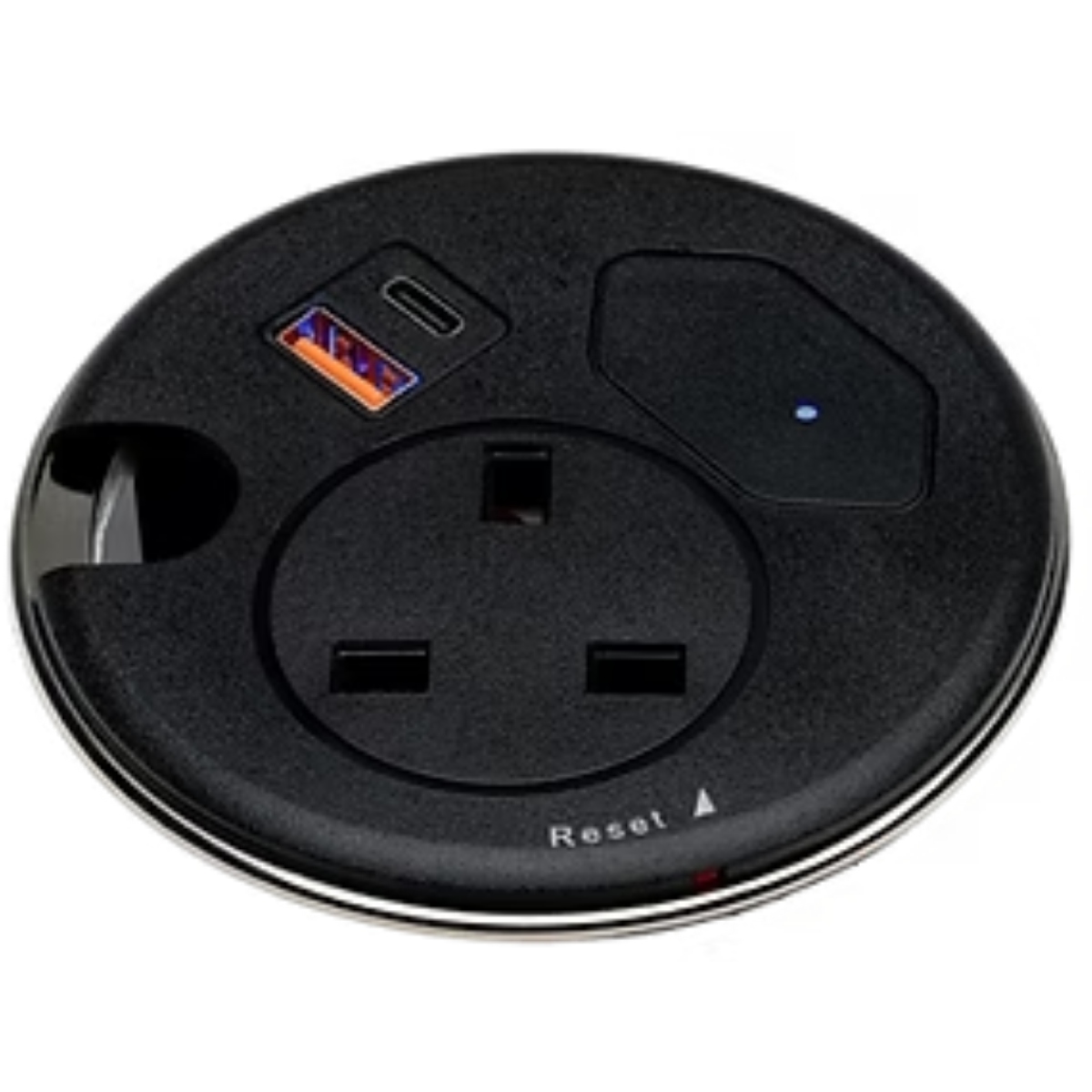

The Punto Plus is a compact and practical 80mm desk grommet module designed to bring convenient power and USB charging directly to the workspace. Ideal for office desks, meeting tables, breakout areas and collaborative environments, Punto Plus offers a neat and professional solution for modern power access.
Quick and easy to install, the module fits neatly into an 80mm diameter cut-out and can be customised to suit individual project requirements. As well as power and USB charging, Punto can also be configured with options such as RJ45, USB, HDMI and audio sockets, making it a flexible choice for workplaces that require power, data and media connections in one unit.
The Punto Plus features a dual smart charger with both USB-A and USB-C ports, offering intelligent device recognition for efficient charging across a wide range of devices. It can also be supplied with combinations of power, data and voice in the same unit, helping to keep desks tidy and workspaces better organised.
For added practicality, cable pull-through provision can also be specified where required. The unit also includes a tool-activated reset function, offering a high level of compliance with BS 6396, where the load must be disconnected and a tool is needed to reset the module.
Available in black or white, the Punto Plus is suitable for a wide range of interior schemes and is also offered in a broad range of approved international power specifications, making it a versatile choice for commercial projects.
Key Features
Compact 80mm desk grommet power module
Dual smart charging with USB-A and USB-C
Intelligent device recognition for efficient charging
Can be configured with power, data and voice in one unit
Optional RJ45, USB, HDMI and audio sockets
Cable pull-through provision available
Tool-activated reset for enhanced BS6396 compliance
Easy to install
Available in black or white
Suitable for a wide range of commercial and office environments
Product Codes
PUN1C00W – White
PUN1C00B – Black
Technical Specification
Input: AC 100–240V / 50–60Hz
Output: Power Delivery (PD 3.0/2.0) – 5V/3A; 9V/2.22A; 12V/1.67A
Programmable Power Supply (PPS): 3.3V–11V
Wattage: 3000W maximum rated
Dimensions: W94mm x L61mm
Cut Out: 80mm diameter
Desk Thickness: 10mm–35mm
